Product Description:

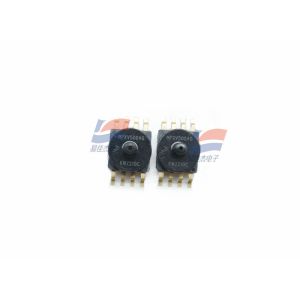

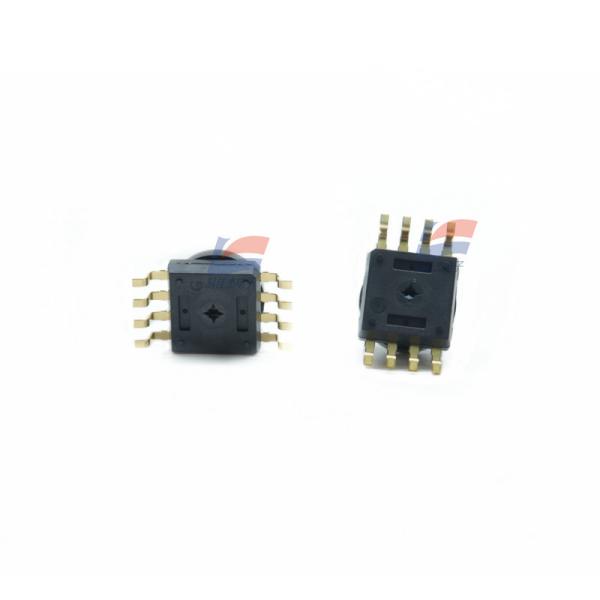

YJJ MPXV5004GC6U MPXV5004GC6T1 0Pa to 3.92KPa Single-Chip Silicon Pressure Sensor Is Used in Consumer Electronics

Features:

MPxx5004 series (MPXV5004G and MPVZ5004G series) are the latest single-chip silicon pressure sensors. These sensors integrate advanced micro-mechanical technology, thin-film metallization and bipolar processes, and can provide a proportional, precise high-level analog output signal in direct relation to the applied pressure. Function
• The temperature compensation range is from 10°C to 60°C.
• Available configurations include surface mount (SMT) or through-hole (DIP) for the strain gauge.
• Durable thermoplastic (PPS) packaging.
• Unique features of MPVZ5004G:
Specifically designed for home appliances, consumer electronics, healthcare, and industrial control markets.
Improved axial ports suitable for industrial-grade tubing.
Maximum error rate of 1.5% from +10 to +60°C within a range of 0 to 100 mm H2O, with automatic zero adjustment.
Maximum error rate of 2.5% from +10 to +60°C within a range of 100 to 400 mm H2O, with automatic zero adjustment.
Maximum error rate of 6.5% from +10 to +60°C within a range of 0 to 400 mm H2O, without automatic zero adjustment.
Product type: Panel interface pressure sensor RoHS:
Pressure Type: Gauge
Working Pressure: 0 Pa to 3.92 kPa
Accuracy: 1.5 %
Output Type: Analog
Installation Style: SMD/SMT
Working Power Supply Voltage: 5 V
Port Type: Single Axial Barbless
Package / Housing: SOP-8
Minimum Working Temperature: 0 °C
Maximum Working Temperature: + 85 °C
Series: MPXx5004
Package: Tube
Trademark: NXP Semiconductors
Working Power Supply Current: 10 mA
Port Size: 3.17 mm
Product Type: Board Mount Pressure Sensors 40
Subcategory: Sensors
Maximum power supply voltage: 5.25 V
Minimum power supply voltage: 4.75 V
Part number alias: 935313726174
Unit weight: 1.306 g

Specifications:
