Product Description:

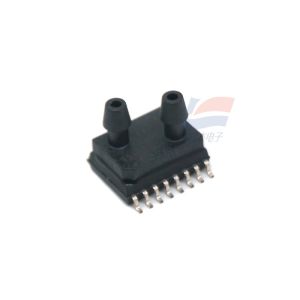

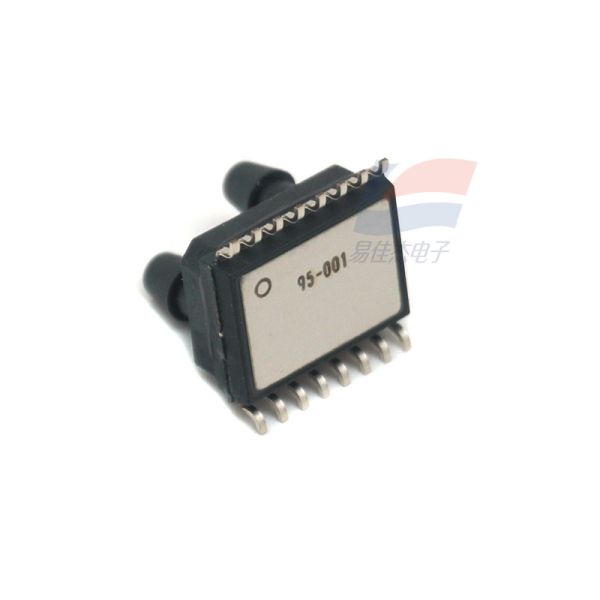

SM3041-005-D-C-3-S Differential Pressure ±5psi Digital I2C Pressure Sensor

Features:

SMI ultra-low voltage digital sensor

SM9541 series

Gauge pressure and differential pressure sensors

The SM9541 series is a digital low-voltage MEMS sensor series that offers advanced pressure sensor technology and CMOS mixed-signal processing technology to generate digital, fully regulated, multi-level pressure and temperature compensated JEDEC standard SOIC-16 package dual vertical sensor transplantation options. It has two types of pressure configurations: compound instrument and differential. With dual ports, vacuum range measurement can minimize the impact of environmental pressure.

Combining the pressure sensor with the signal regulation ASIC in a single package simplifies the use of pressure sensors in advanced silicon micromachining. Pressure sensors can be directly installed on standard printed circuit boards, and high-level calibration pressure can obtain signals from digital interfaces. This eliminates the need for additional circuits, such as compensation networks or microcontrollers containing custom correction algorithms.

SM9541 is transported in the form of tubes or tapes and reels.

Pressure type: Differential

Working pressure: 5 psi

Accuracy: 1%

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3.3V

Port type: Dual Barbed

Resolution: 14 bits

Package/Box: SOIC-16

Minimum operating temperature: -20 ° C

Maximum operating temperature: + 85 ° C

Series: SM3041

Trademark: TE Connectivity/SMI

Humidity sensitivity: Yes

Working power supply current: 2 mA

Product type: Board Mount Pressure Sensors

one

Subcategory: Sensors

Power supply voltage - Maximum: 3.6V

Power supply voltage - minimum: 3 V

Trademark Name: AccuStable

Unit weight: 6 g
