Product Description:

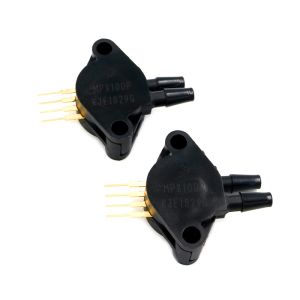

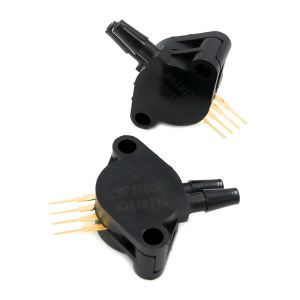

MPX2010DP MPX10DP 10KPA Board-machine Interface Pressure Sensor Is
Used For Engine And Suspension Control
Features:
A new type of single-chip silicon pressure sensor. These sensors
integrate micro-mechanical technology, thin-film metallization and
bipolar processes, and can provide high-level analog output signals
proportional to the applied pressure.
Characteristics
The temperature compensation range is from 10° C to 60℃
Strain gauge surface mount (SMT) or through-hole (DIP)
configurations are available
Durable thermoplastic (PPS) packaging
Designed for the home appliance, consumer electronics, and
industrial control markets
The improved axial port is suitable for industrial-grade pipes
The error rate of 0 to 100 mm H2O within the temperature range of
+10 to +60℃ is 1.5%, with an automatic zero adjustment function
Differential pressure/gauge pressure, below 115 kPa
We offer a wide range of medium-range pressure sensors for
measuring the difference (pressure difference) between the pressure
sources applied on both sides of the sensor, or the difference
between the source pressure and the atmospheric pressure (gauge
pressure).
Product type: Board computer interface pressure sensor
RoHS:
Pressure type: Differential
Working pressure: 10 kPa
Accuracy: 1%
Output type: Analog
Installation style: Through Hole
Working power supply voltage: 10 V
Port type: Dual Axial Barbed
Packaging/Box: Unibody-4
Minimum operating temperature: -40 ° C
Maximum operating temperature: + 125 ° C
Series: MPXx2010
Packaging: Tray
Trademark: NXP Semiconductors
Working power supply current: 6 mA
Product type: Board Mount Pressure Sensors
100
Subcategory: Sensors
Power supply voltage - Maximum: 16 V
Power supply voltage - minimum: 1 V
Part number alias: 935325328117
Unit weight: 5.058 g
Specifications:
| Working pressure | 10 kPa |
| Accuracy | 1% |
| Output type | Analog |
| Installation style | Through Hole |
