Product Description:

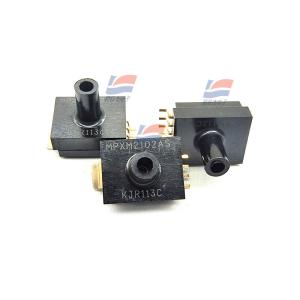

MPXM2102AS Board-computer Interface Pressure Sensor Is Used In Pressure Gauge Detectors

Features:

MPX2102 MPXV2102G/MPXM2102 series piezoresistive silicon pressure sensor for Medical and industrial control applications.

It provides a very linear voltage output, which is proportional to the applied pressure

Strain gauges and thin-film resistance networks were integrated on single-chip silicon wafers

The range, offset calibration and temperature compensation are achieved through the laser calibration chip

Product type: Board computer interface pressure sensor

RoHS:

REACH - SVHC:

Pressure type: Absolute

Working pressure: 20 kPa to 100 kPa

Accuracy: 0.5%

Output type: Analog

Installation style: SMD/SMT

Working power supply voltage: 10 V

Port type: Single Axial Barbless

Packaging/Box: M-PAK-5

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPXx2102

Packaging: Tube

Trademark: NXP Semiconductors

Working power supply current: 6 mA

Port size: 2.9mm

Product type: Board Mount Pressure Sensors

60

Subcategory: Sensors

Power supply voltage - Maximum: 16 V

Power supply voltage - minimum: 1 V

Part number alias: 935321201174

Unit weight: 527.800 mg

Specifications:

Yijiajie Electronics is a full range of silicon pressure sensors from the United States, FREESCALE/, GE, MEAS, SMI, and a full range of sensing and control products from the United States pressure, temperature and humidity, gas flow, current, Hall effect, etc., Japan HAMAMATSU flame, UV sensors, photodiodes, Japan FIGARO, UK CITY, ALPHASENSE full range of semiconductors, catalytic, electrochemical gas sensors, French HUMIREL/MEAS humidity sensors and other international well-known companies authorized agents or distributors, to provide customers with product information, products Solutions, product selection, supply guarantee and logistics services, etc.
