Product Description:

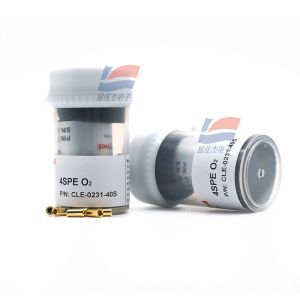

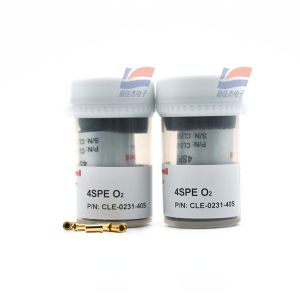

4SPE O2 CLE-0231-40S Electrochemical Oxygen Concentration Monitoring Gas Sensor

Features:

Product model CLE-0231-40S

Range 0 to 30% O2

Load 100 ppmSensitivity 1.4 ± 0.6 mA/ppm

Baseline (20℃) <± 0.4 mA

Baseline drift is equivalent to 0 to 0.5 ppm

(-20 to 40℃)Resolution 0.1ppm

Response time (T90) £60 seconds

linearity

Long-term stability <2%

Working condition

Operating temperature -20 ℃ to 50 ℃

Operating humidity 15 to 90%RH(non-condensing)

Working pressure 90 to 110 kPa

Bias voltage 0 mV

Storage time 6 months (in special box)

Storage temperature 0 ℃ to 20 ℃
