Product Description:

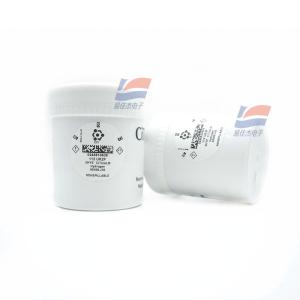

3HYE AE006-J30 3 Series Electrochemical Gas Hydrogen H2 Sensor For Hydrogen Detector H2 Concentration Tester

Features:

Nominal Range:0-10 000ppm

Maximum Overload:20 000ppm

Expected Operating Life:Two years in air

Output Signal:0.003 ± 0.001 µA/ppm

Resolution:10ppm

Temperature Range:-20°C to +50°C

Pressure Range:Atmospheric ± 10%

Pressure Coefficient:0.006 % signal/mBar

T90 Response Time:<70 seconds

Relative Humidity Range:15 to 90% non-condensing

Typical Baseline Range:+2 to -150ppm equivalent

(pure air)

Maximum Zero Shift:-150ppm equivalent

(+20°C to +40°C)

Long Term Output Drift:<2% signal loss/month

Recommended Load:10 W

Resistor

Bias Voltage:Not required

Repeatability:2% of signal

Output Linearity:Linear

Specifications:
